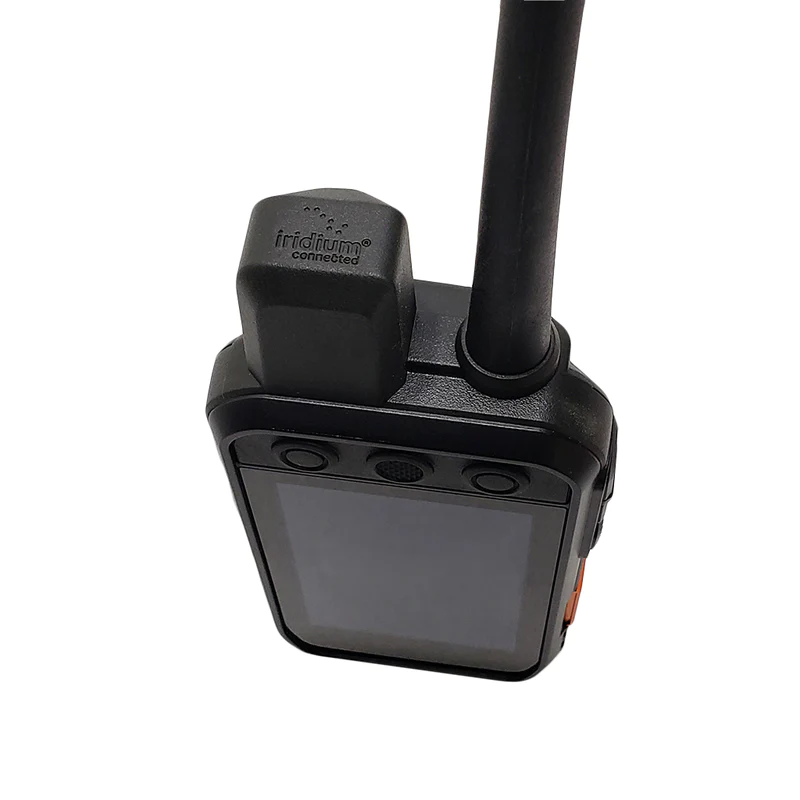

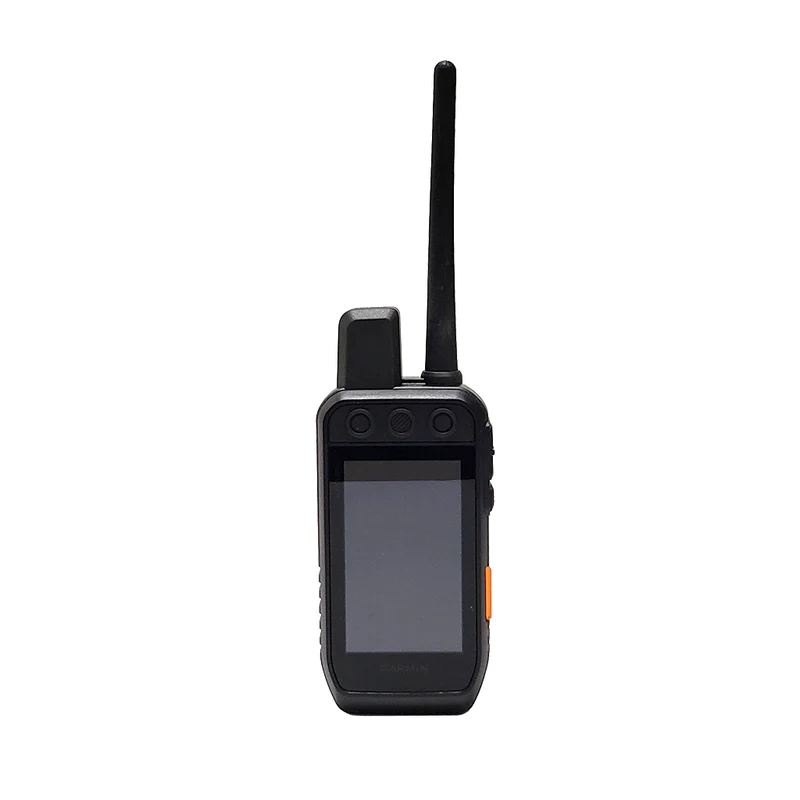

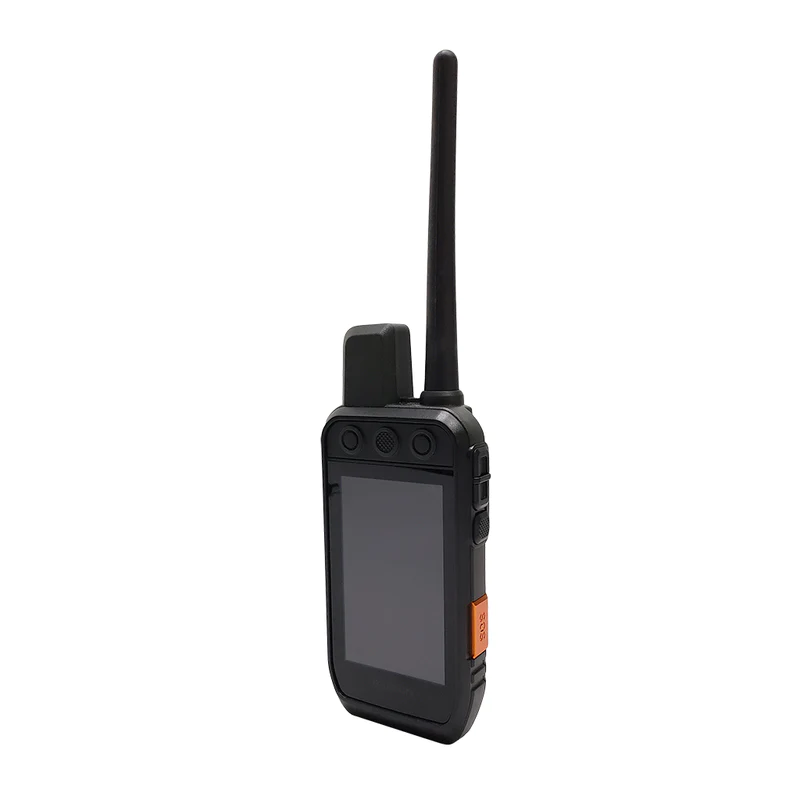

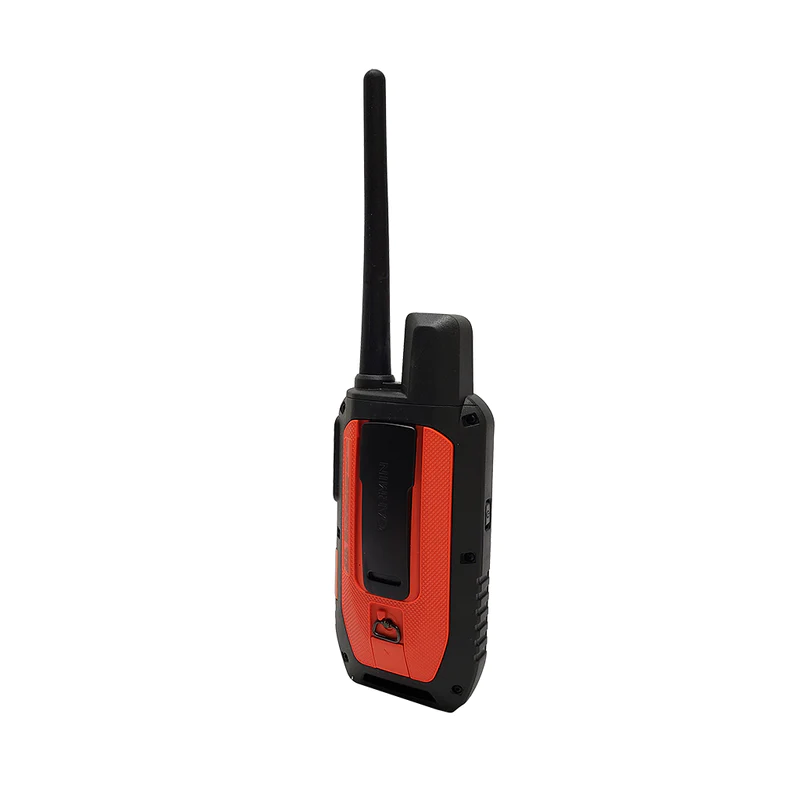

GARMIN ALPHA 200I HANDHELD

The Alpha® 200i dog tracking and training system let you monitor up to 20 dogs from up to 9 miles (depending on dog device) on a 3.5” display with a 2.5-second update rate. Easily control training functions by using the button-operated, dog-focused design. You’ll also have access to premium Garmin navigation features, such as preloaded TopoActive maps, BirdsEye Satellite Imagery with direct-to-device downloads, and a built-in three-axis compass and barometric altimeter. Now, inReach® technology adds two-way messaging and interactive SOS alerts for peace of mind while you’re in the field (active satellite subscription required; jurisdiction restrictions may apply).

• Features sunlight-readable 3.5” capacitive touchscreen display and a button-operated, dog-focused design for quick, minor adjustments
• Easily set up and monitor up to 20 dogs from up to 9 miles away with a 2.5-second update rate by using multiple global navigation satellite systems (GPS and Galileo)
• Dog list and group management lets you keep inactive dogs in the system for easier setup
• Interactive SOS alerts and two-way messaging via the 100% global Iridium® satellite network (active satellite subscription required; jurisdiction restrictions may apply)
• Preloaded TopoActive maps, direct-to-device BirdsEye Satellite Imagery downloads, and built-in three-axis compass and barometric altimeter
• User-replaceable battery lasts up to 20 hours; up to 15 hours with inReach® technology enabled
• 18 levels of correction, including vibration and adjustable tones
• Backward compatible so you can keep your existing collars and other Alpha® compatible devices; transfer location data between compatible Garmin devices
• Hunt Metrics data shows each dog’s daily hunting patterns and behaviors per hunt so you can take measures to keep them healthy and safe

Compatible with Garmin Explore™ website and app to help you manage tracks, routes and waypoints and review statistics from the field.



Check out our blog on Our Favorite New Features of The Garmin Alpha 200i and Garmin Alpha 200i vs Alpha 100.







Compatible Collars:

Garmin TT15X

Garmin T5X

Garmin TT15

Garmin TT15 Mini

Garmin T5

Garmin T5 Mini



Owner’s Manual: Garmin Alpha 200i Owner’s Manual

SPEC

Physical Dimensions: 2.7 x 6.4 x 1.3″ (not including the antenna)

Touchscreen: Yes

Display Size: 1.8″w x 3.0″h (3.5″ diagonal)

Display Resolution: 282 x 470 pixels

Display Type: Transflective, color FTF touchscreen

Weight: 9.9 ounces with standard antenna and battery

Battery Type: Rechargeable lithium-ion

Battery Life: Up to 20 hours; up to 15 hours with inReach technology enabled

Water Rating: IPX7

High-Sensitivity Receiver: Yes

Interface: High-Speed USB

Memory: 16 GB



Maps and Memory:

Preloaded Maps: TopoActive

Ability to add maps: yes

Basecamp: Yes

Birdseye: Yes, direct to device

External Memory Storage: MicroSD card

Track Log: 20,000 points, 250 save gpx tracks, 300 saved fit activities

Routes: 250



Sensors:

Barametric Altimeter: Yes

Compass: Yes (tilt-compensated 3-axis)



Two-Way Radio Features:

Frequency Band: MURS

Range: TT15 and T5 – 9 Miles; TT15 Mini and T5 Mini – 4 Miles

• IN THE BOX

  Alpha 200i Handheld with rechargeable lithium-ion battery pack

  Belt Clip

  AC Adapter

  MicroUSB Cable

  Documentation
